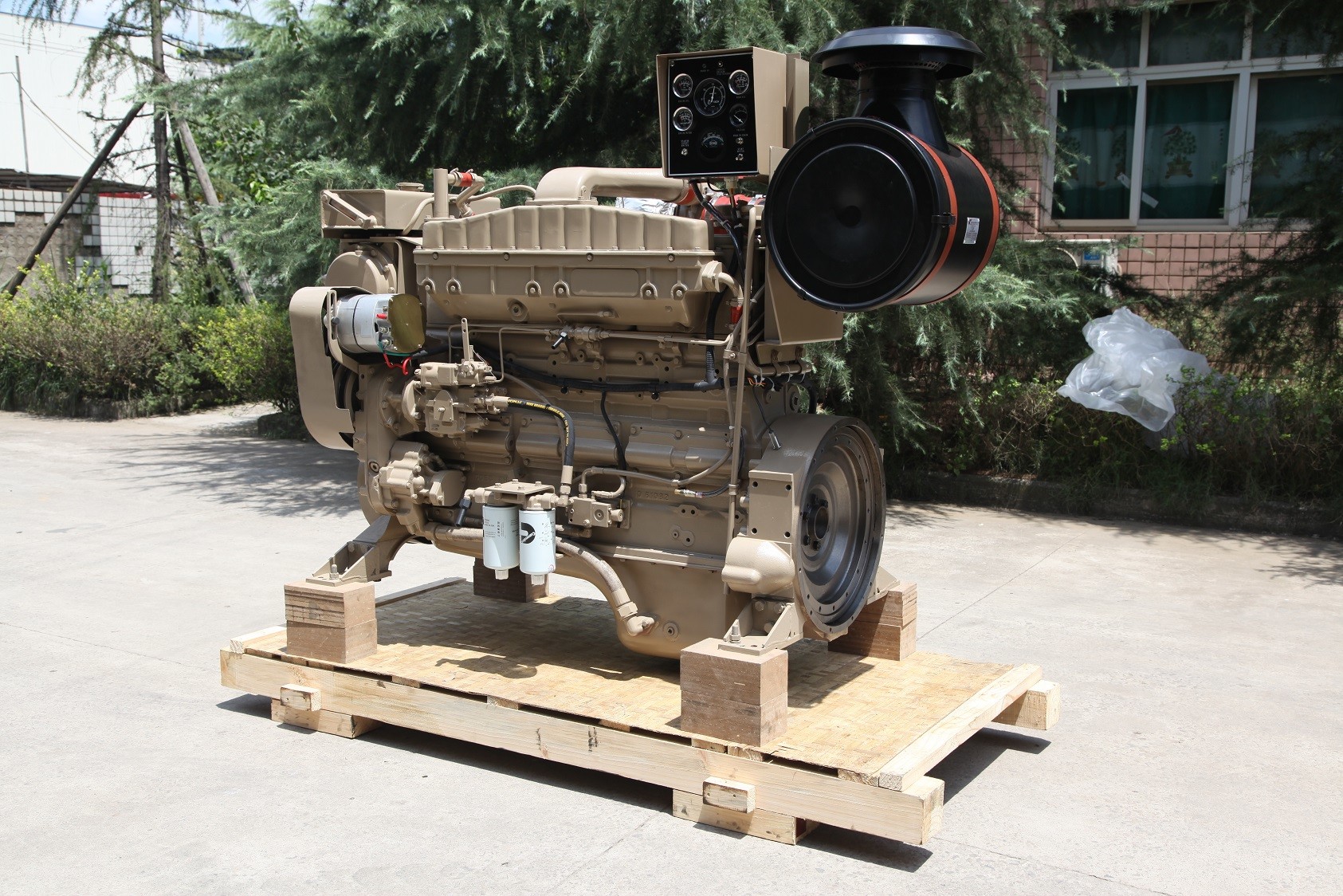

50HZ 1500RPM CUMMINS NTA855-DM Marine Diesel Generator Set Diesel Engine

Ask Lasest Price
Brand Name :	Cummins
Model Number :	NTA855-M
Certification :	ISO9001:2008
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000
Delivery Time :	30

Add to Cart

Product Details
Company Profile

50HZ 1500RPM CUMMINS NTA855-DM Marine Diesel Generator Set Diesel Engine

Specification for cummin NTA855-M marine power:

1. Model NTA855-M

2. Bore * Stroke:139mm * 152mm
3.NTA855-M Marine engine Cylinders 6cylinders in line, Air-Intake,Turbocharged and Aftercooled
4. Displacement 14L
5. Cooling heat exchanger with sea water pump or salt water pump

6. exhaust type: water cooled exhaust manifold
7. Rotation Direction Counter-clockwise (Facing the flywheel)

8. Electric system: 24V

9. Fuel consumption :66.4L/Hour
10. Rated engine power : 300HP,400HP,450HP,500HP
11. Rated engine speed: 1800 rpm
12. Peak Torque: 1384N. M /1300rpm
13. Dimension: 1965mm*952mm *1618mm

14. Net weight: 1500kg
15. match with gearbox ZF,twin disc, advance etc

All NTA855-M Series Marine Diesel Engine

Brand	Model	Cyl	Bore/Stroke	Liter	Power KW/RPM	Application	Dimension	Weight
Cummins	NT855-M	6	140/152	14	202/1800	propulsion	19759351598	1430
Cummins	NT855-M	6	140/152	14	224/1800	propulsion	19759351598	1430
Cummins	NT855-M	6	140/152	14	179/1800	propulsion	19759351598	1430
Cummins	NT855-M	6	140/152	14	187/1800	propulsion	19759351598	1430
Cummins	NT855-M	6	140/152	14	209/1800	propulsion	19759351598	1430
Cummins	NT855-M	6	140/152	14	164/1800	propulsion	19759351598	1430
Cummins	NTA855-M	6	140/152	14	261/1800	propulsion	19759351598	1430
Cummins	NTA855-M	6	140/152	14	299/1800	propulsion	19759351598	1430
Cummins	NTA855-M	6	140/152	14	299/2100	propulsion	19759351598	1430
Cummins	NTA855-M	6	140/152	14	336/1800	propulsion	19759351598	1430
Cummins	NTA855-DM	6	140/152	14	180/1500	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	231/1500	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	240/1500	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	264/1500	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	283/1500	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	317/1500	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	287/1800	auxiliary	19659521538	1433
Cummins	NTA855-DM	6	140/152	14	313/1800	auxiliary	19659521538	1433

MODEL	SO NO.	RATED POWER kw/RPM	MAX POWER kw/RPM	APPLICATION	CERTIFICATE
NT855-M	SO13011	201/1800		marine propulsion	CCS/IMO
NT855-M	SO13012	224/1800		marine propulsion	CCS/IMO
NTA855-D(M)	SO13019	284/1500		auxiliary power	CCS/IMO
NTA855-D(M)	SO13051	287/1800		auxiliary power	CCS/IMO
NT855-M	SO13058	179/1800		marine propulsion	CCS/IMO
NTA855-D(M)	SO13065	240/1500		auxiliary power	CCS/IMO
NTA855-M400	SO13096	298/2100		marine propulsion	CCS/IMO
NTA855-D(M)	SO13140	313/1800		auxiliary power	CCS/IMO
NTA855-M350	SO13273	261/1800		marine propulsion	CCS/IMO
NT855-M	SO13387	203/1744	224/1800	marine propulsion	CCS
NT855-M	SO13388	163/1744	179/1800	marine propulsion	CCS
NTA855-M	SO13389	237/1744	261/1800	marine propulsion	CCS
NTA855-M	SO13390	271/2027	298/2100	marine propulsion	CCS
NTA855-D(M)	SO13396	317/1500		auxiliary power	CCS/IMO
NT855-M	SO13416	203/1744	224/1800	marine propulsion	CCS
NT855-D(M)	SO13434	180/1500		auxiliary power	CCS/IMO
NTA855-M450	SO13458	336/1800		marine propulsion	CCS/IMO
NTA855-D(M)	SO13471	317/1500		auxiliary power	CCS/IMO
NTA855-D(M)	SO13490	284/1500		auxiliary power	CCS/IMO
NTA855-D(M)	SO13495	287/1800		auxiliary power	CCS/IMO
NTA855-M	SO13497	305/1744	336/1800	marine propulsion	CCS
NTA855-M	SO13510	271/1744	298/1800	marine propulsion	CCS
NTA855-M	SO13520	298/2100		marine propulsion	CCS/IMO
NTA855-D(M)	SO13615	313/1800		auxiliary power	BV Class
NTA855-D(M)	SO13617	284/1500		auxiliary power	NK
NTA855-D(M)	SO13618	240/1500		auxiliary power	BV Class
NT855-M	SO13638	110/1600	121/1652	marine propulsion	CCS
NT855-M	SO13639	140/1600	154/1652	marine propulsion	CCS
NT855-M	SO13640	160/1600	176/1652	marine propulsion	CCS
NTA855-D(M)	SO13646	317/1500		auxiliary power	BV Class
NTA855-M	SO13649	198/1600	218/1652	marine propulsion	CCS
NTA855-M	SO13650	220/1744	242/1800	marine propulsion	CCS
NTA855-M	SO13660	271/1744		marine propulsion	CCS
NTA855-M	SO13662	336/2100	370/2168	marine propulsion	CCS
NTA855-D(M)	SO13704	284/1500		auxiliary power	BV Class
NTA855-M	SO13710	336/2100		marine propulsion	CCS
NTA855-M	SO13711	298/1800		marine propulsion	CCS
N855-DM	SO13714	317/1500	351/1500	auxiliary power	CCS/IMO TIRE2
N855-M	SO13715	298/1800		marine propulsion	CCS/IMO TIRE2
N855-M	SO13716	261/1800		marine propulsion	CCS/IMO TIRE2
N855-M	SO13717	298/2100		marine propulsion	CCS/IMO TIRE2
N855-DM	SO13718	240/1500	264/1500	auxiliary power	CCS/IMO TIRE2
N855-DM	SO13719	287/1800	317/1800	auxiliary power	CCS/IMO TIRE2
N855-DM	SO13720	284/1500	321/1500	auxiliary power	CCS/IMO TIRE2
N855-DM	SO13721	313/1800	347/1800	auxiliary power	CCS/IMO TIRE2
NT855-M	SO13725	183/1744	201/1800	marine propulsion	CCS
NTA855-M	SO13732	110/1600		marine propulsion	CCS
KTA19-M	SO40001	351/1800		marine propulsion	CCS/IMO
KTA19-M	SO40002	373/1800		marine propulsion	CCS/IMO
KTA19-D(M)	SO40008	336/1500		auxiliary power	CCS/IMO
KT19-M	SO40021	317/1800		marine propulsion	CCS/IMO
KTA19-M3	SO40028	447/1800		marine propulsion	CCS/IMO
KTA19-M	SO40036	410/2100		marine propulsion	CCS/IMO
KTA19-D(M)	SO40038	448/1500		auxiliary power	CCS/IMO
KTA19-M3	SO40044	477/1800		marine propulsion	CCS/IMO
KTA19-M4	SO40077	522/2100		marine propulsion	CCS/IMO
KTA19-D(M)	SO40163	448/1500		auxiliary power	CCS/IMO
KTA19-D(M)	SO40168	392/1800		auxiliary power	CCS/IMO
KTA19-D(M)	SO40185	336/1500		auxiliary power	CCS/IMO
KTA19-M	SO40197	351/1800		marine propulsion	CCS/IMO
KTA19-M3	SO40200	434/1744	477/1800	marine propulsion	CCS
KTA19-M3	SO40201	407/1744	447/1800	marine propulsion	CCS
KTA19-M	SO40203	339/1744	373/1800	marine propulsion	CCS
KTA19-M	SO40204	318/1744	351/1800	marine propulsion	CCS
KT19-M	SO40213	288/1744	317/1800	marine propulsion	CCS
KTA19-D(M)	SO40249	403/1500		auxiliary power	CCS/IMO
KTA19-D(M)	SO40257	463/1800		auxiliary power	CCS/IMO
KTA19-D(M)	SO40259	336/1500		auxiliary power	CCS/IMO
KTA19-D(M)	SO40260	403/1500		auxiliary power	CCS/IMO
KTA19-D(M)	SO40261	448/1500		auxiliary power	CCS/IMO
KTA19-D(M)	SO40274
