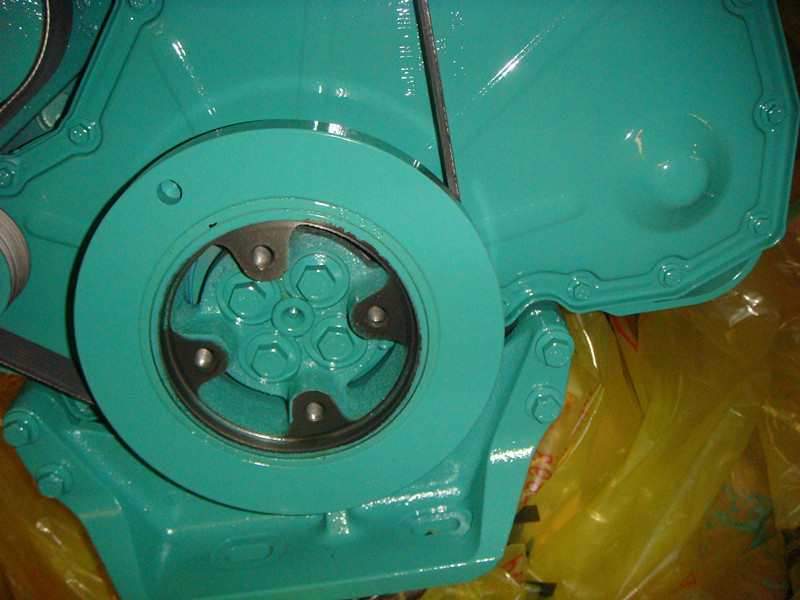

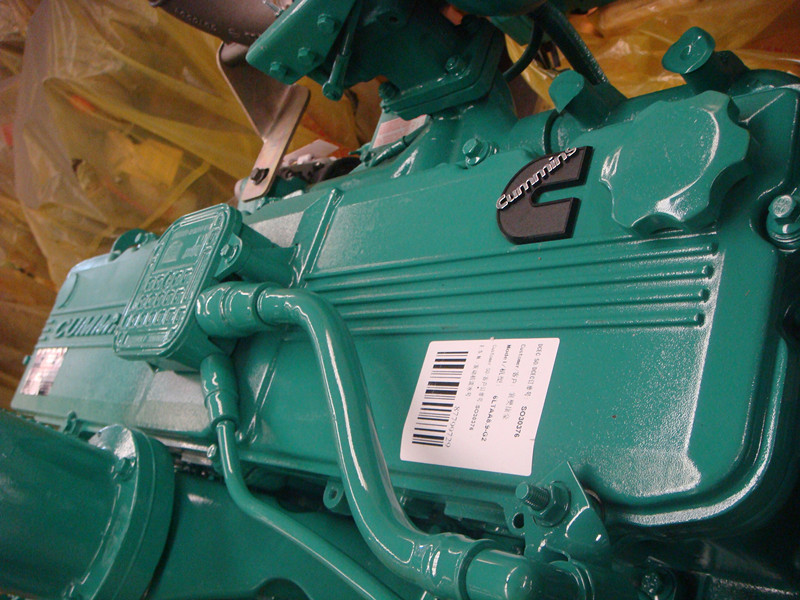

Cummins engine 6CTAA8.3-G for Generator

Technical Specification

Cylinder In-line 6

Compression Ration 16.6:1

Displacement 8.9L

Rated Speed 1500r/min (1800r/min)

Rated Power 220KW(240KW)

Standby Power 245KW

Genset Matching Power 180KW

Fuel Injection Pump P7100

Steady Speed Droop ≤1%

Lubricant Capacity 19L

Coolant Capacity 11.1L(Engine Only)

Net Weight 710kg

Wet Weight 740kg

Overall Dimension(LXWXH) 680X880X680mm

Coolant Intake Size Φ50mm

Coolant Outlet Size Φ57mm

Cooling Way Positive Water Cooling Cycle

DCEC Cummins Series Diesel Engine for Generator

Chongqing SAC Group Co., Ltd is located in Chongqing,SAC Power mainly engages in research,manufacture, sales diesel engine, gas engine and generating sets as well. SAC's prime products include Cummins diesel engines (30kw ~ 2000kw), such as NTA855, KTA19, KTA38 and KTA50-TA, gas engine (40kw ~ 700kw), diesel generator sets (200kw to 2000kw), natural gas generator sets (30kw ~ 650kw) .

The Cummins PT fuel injection system, hydraulic injection and changeable timing system, turbocharging system, and air inner-cooling system; With those features, SAC's engines possess more advantages, such as larger power, fuel-efficient, lower noise,smaller volume, and lighter weight, etc.

Continual research and innovative development in technology is the key to our success. We have obtained more than 30 nationally registered patents, including 3 invention patents (cast-steel cylinder body of diesel engine), 15 design patents (cylinder block of diesel engine), and 18 utility model patents (cast-steel individual cylinder head of diesel engine).
