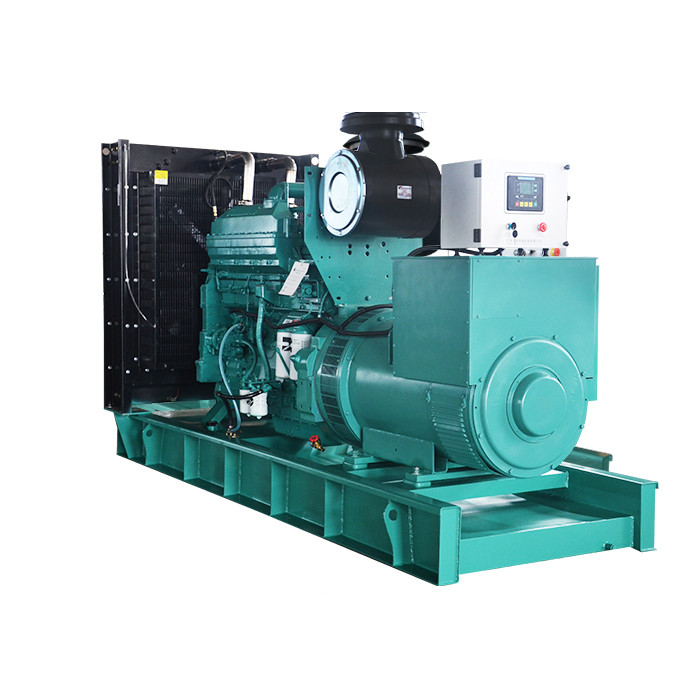

50hz 400kw Diesel Generator Powered by Cummins KTA19-G3A

Ask Lasest Price
Brand Name :	Cummins
Model Number :	KTA19-G3A
Certification :	ISO9001
Price :	Negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	20 SETS per Month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

50hz 400kw Diesel Generator Powered by Cummins KTA19-G3A

500kva diesel power generator with Cummins engine specifications

Diesel Generator Specifications
Model:				SAC-C440
Prime Power:				400KW / 500KVA
Standby Power:				440KW / 550KVA
Frequency:				50HZ
Voltage:				400/230V
Phase:				3 Phase
P.F(COS):				0.8
Fuel:				Diesel
Rated Current:				720A
Start Method:				24V DC Start Battery
Accessory:				Battery, wire, exhaust pipe, muffler, damper, breaker, tools
Altitude:				≤1000m
Open Type Generator Size:				3400(mm)×1380(mm)×2050(mm)
Open Type Generator Weight:				4290KG
Silent Type Generator Size:				4630(mm)×1660(mm)×2250(mm)
Silent Type Generator Weight:				5700KG

Engine Specifications
Manufacturer:				Chongqing Cummins Engine Co., Ltd
Model:				KTA19-G3A
Air Intake System:				Turbo, Water/Air cooling
Fuel System:				PT type fuel pump
Cylinder Arrangement:				6 in line
Displacement:				19L
Bore and Stroke:				159×159 mm
Compression Ratio:				13.9:1
Rated RPM:				1500rpm
Maximum Output Power:				504KW/675HP
Governor Type:				Electronic
Exhaust System
Exhaust Gas Flow:				1604L/s
Exhaust Temperature:				557℃
Max Back Pressure:				10kPa
Air Intake System
Max Intake Restriction:				6.23kPa
Burning Capacity:				579L/s
Air Flow:				9800L/s
Fuel System
100%( Prime Power) Load:				203 g/Kw.h
75%(Prime Power) Load:				207 g/Kw.h
50%(Prime Power) Load:				216 g/Kw.h
100%( Prime Power) Load:				101.9L/h
Oil System
Total Oil Capacity:				50L
Oil Consumption:				≤4g/kwh
Engine Oil Tank Capacity:				38L
Oil Pressure at Rated RPM:				345-483kPa
Cooling System
Total Coolant Capacity:				106L
Thermostat:				82-93℃
Max Water Temperature:				104℃

Alternator Specifications
Manufacturer:				Mecc Alte Alternator (Haimen) Ltd
Model:				ECO40-3S/4
Rated Capacity:				500KVA
Winding:				100% Copper Wire
Frequency:				50HZ
Speed:				1500 RPM
Connecting Type:				3 Phase and 4 Wires, “Y” type connecting
Power Factor:				0.8
Protection Grade:				IP23
Exciter Type:				Brushless, self-exciting, with AVR
Insulation Class, Temperature Rise:				H/H
Alternator Warranty:				2 Year No Time Limited
Voltage Regulation:				≥±5%

Control System Specifications
Manufacturer:				DEEP SEA ELECTRONICS PLC (UK)
Model:				DSE6020
Type:				AMF Automatic Operation
Operation:				Automatic Start and Auto Mains (Utility) Failure Control
Alarm Protect:				Engine pre-heat, Current monitoring, Comprehensive Shutdown, Charge Failure

Our Services

Warranty Time: 1 year or 1000 running hours, which occurs the first.
